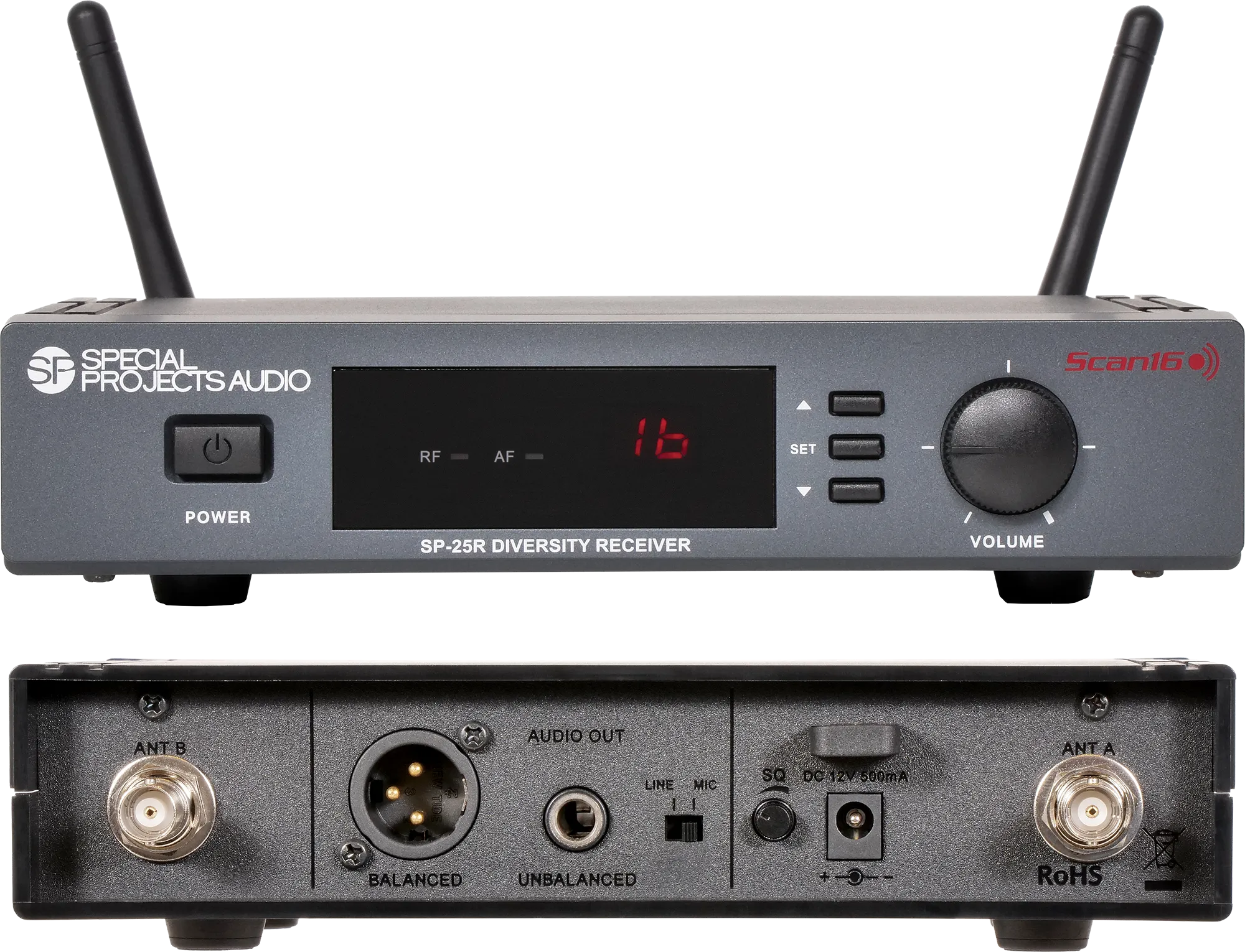

Special Projects Audio 16-channel true diversity auto-scan replacement receiver by Galaxy Audio for the EVO Headset Mic or fitness pack system in the 540-570 MHz frequency range. The Scan16 and EVO Mic Auto Scan true wireless system is the easiest system to setup and use. The receiver finds the strongest channel, so all you have to do is set the EVO headset or a fitness body pack to the corresponding channel and you’re done!
Special Projects Audio SP-25RD1 Wireless Receiver by Galaxy Audio - Features
- 540-570 MHz Frequency Range
- 16 Channels
- Auto-Scan
- True Diversity
Product Specifications
Special Projects Audio SP-25RD1 Wireless Receiver by Galaxy Audio – Specifications
- Band: UHF
- Frequency Channels: 16
- Frequency Range: 540-570 MHz
- Frequency Stability: ±0.005%
- Outputs: 1 Balanced XLR, 1/4" Unbalanced (Mic.= -20dB / Line = 0dB)
- Sensitivity: 8 dBµV over 80dB S/N ratio
- Image and Spurious Rejection: 80 dB minimum
- Modulation: FM
- Signal to Noise: >94dB, at 48KHz deviation and 60dBV antenna input
- Frequency Response: 80Hz to 12KHz (±3dB)
- T.H.D.: <1.0% (at 1KHz)
- Power Supply: DC 12V ~ 18V
- Current Consumption: 110mA at 3V
- Dimensions: 13 × 10 × 6 in
- Weight: 2.75 lbs
