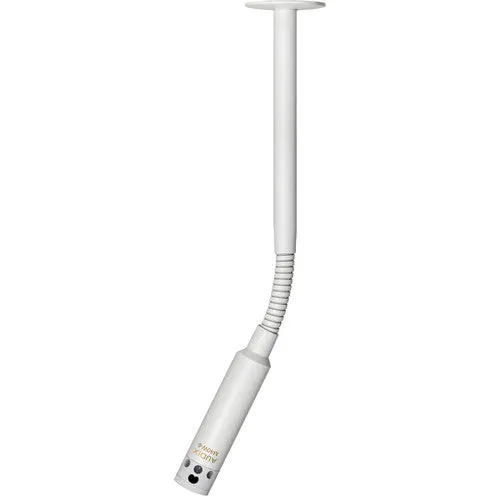

The white M40W6S Miniature High-Output Supercardioid Ceiling Microphone with 6" Gooseneck from Audix is designed to accurately capture speech in conference, instruction, and sound reinforcement applications such as lectures, meetings, medical procedures, and more. The microphone is equipped with a flexible gooseneck for easy and accurate positioning and is built with an integrated cable that terminates with a phoenix connector. Its wide frequency response, low noise, and high sensitivity characteristics are complimented with RFI shielding that offers immunity from noise caused by electronic devices.
High output for distance miking
Optimized for voice recognition
Immunity from RF interference
Operates on 18 to 52V phantom power
Point and shoot directivity
Miniaturized integrated preamp circuitry
No external power adapter needed
12mm gold vapor diaphragm
Extremely low noise, high sensitivity
Supercardioid polar pattern
Optional junction box available
Applications
Video conferencing
Distance learning
Surveillance
Hospital and medical procedures
Ambient room miking
Audix M40 Specs
Microphone
| Capsule | Condenser |
| Polar Pattern | Supercardioid |
Performance
| Frequency Range | 60 Hz to 10 kHz |
| Maximum SPL | 130 dB SPL (.5% THD) |
| Impedance | 150 Ohms |
| Sensitivity | 37 mV/Pa at 1 kHz |
| Dynamic Range | 108 dB |
| Signal-to-Noise Ratio | 72 dB |
| Equivalent Noise Level | 22 dB A-Weighted |
Connectivity
| Output Connectors (Analog) | 1 x XLR 3-Pin Male |
Power
| Operating Voltage | 18 to 52 V (Phantom Power) |
Physical
| Color | White |
| Construction Material | Copper, Steel |
| Dimensions | L: 2.1" / L: 54 mm (Capsule) L: 6" / L: 15.2 cm (Gooseneck) |
| Weight | 0.7 oz / 20 g |
